Fleetwatch FMS · Data Tools 4
Personalizing Your Home Page Tiles
Data Tools 4 has a refreshed interface that lets you personalize both the Home page and the Vehicles page, so you see the information you use most as soon as you log in. This guide covers setting up the tiles on the Home page.
Recommended Tiles
The Home page offers a variety of tiles. For most users, we recommend these two:
|
Service History
Look up a vehicle’s service history right from the Home page, without navigating anywhere else.
|
RIH Status
See at a glance which RIHs are online or offline, and when each one last communicated.
|
Setting Up Your Tiles
| 1 |
Click Tools.
From the Home page, click the Tools icon at the top of the page.
|
| 2 |
Open Tile Setup.
In the Tools panel, click the Tile Setup tab.
|
||||||
| 3 |
Choose your layout and tiles.
Under Tile Structure, choose how many tiles to show. Then, under Home Tiles List, pick a tile for each spot. For the recommended setup:
|
||||||
| 4 |
Save.
Click the Save icon (💾) at the top of the Tools panel.

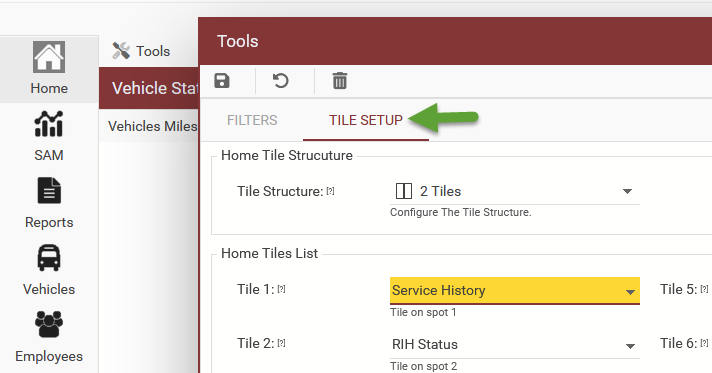

The Tile Setup tab, with 2 tiles: Service History in spot 1 and RIH Status in spot 2.
|

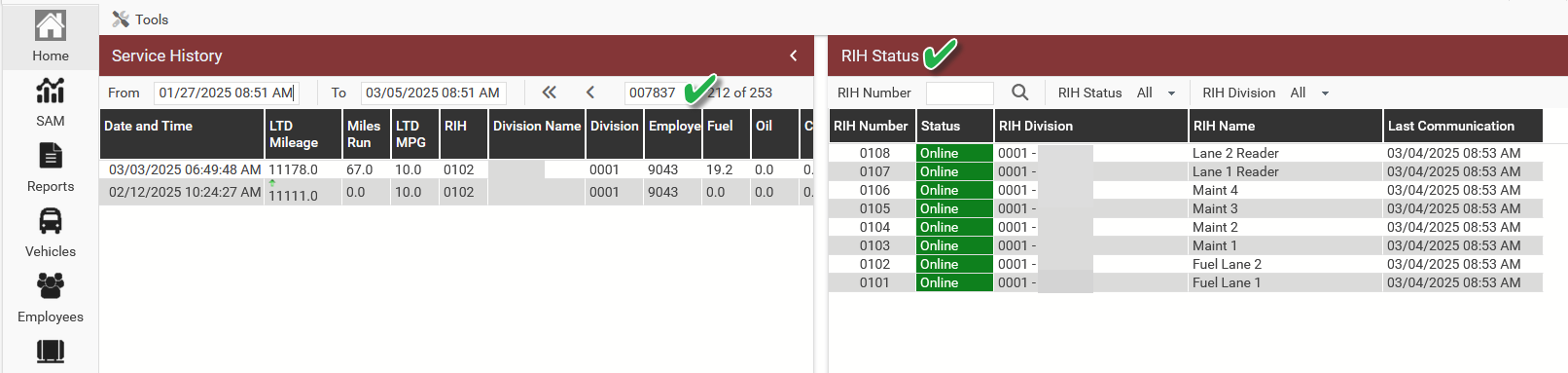

The Result
Your Home page now shows both tiles side by side:
| Service History | Enter a vehicle number and date range to see its transactions, including date and time, LTD mileage, miles run, MPG, RIH, and fluids. Use the arrows to step through vehicles. |
| RIH Status | Lists every RIH with its status (Online or offline), division, name, and last communication time. Filter by RIH number, status, or division. |
Tip
If an RIH’s Last Communication time is falling behind the others, or its status isn’t Online, check it in the Service Activity Monitor (SAM) for more detail.
Questions about Data Tools 4? Contact Fleetwatch Support.
